Assembling the End effector Fan

Written By: Neil Jansen
  • Comments: 0
  • Favorites: 0
  • Completions: 5

Difficulty

Moderate

Steps

7

Time Required

Suggest a time??

Sections

1

Flags

0

Quiz

0

  1. 30mm fan

    • 30mm fan

    • 2-pin cable, 1M long (red / black wires w/0.1" connector)

    Edit

  2. Cut the little connector off the end of the 30mm fan.

    • Cut the little connector off the end of the 30mm fan.

    Edit

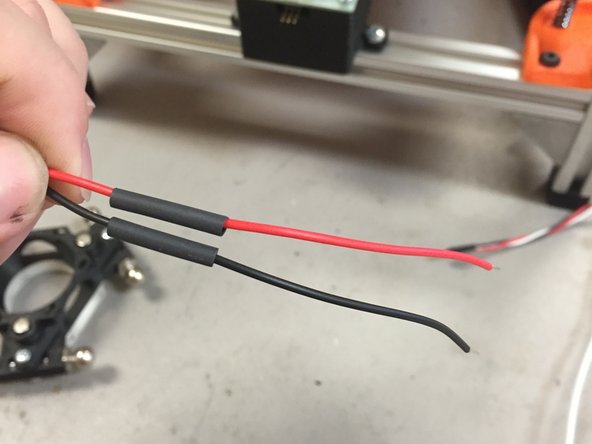

  3. Add a ~20mm long piece of heat shrink tubing to each piece of wire.

    • Add a ~20mm long piece of heat shrink tubing to each piece of wire.

    Edit

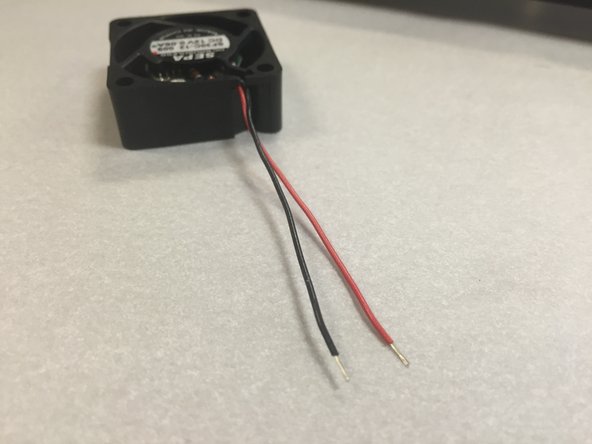

  4. Strip the wires on the ends of both the fan and the cable.

    • Strip the wires on the ends of both the fan and the cable.

    Edit

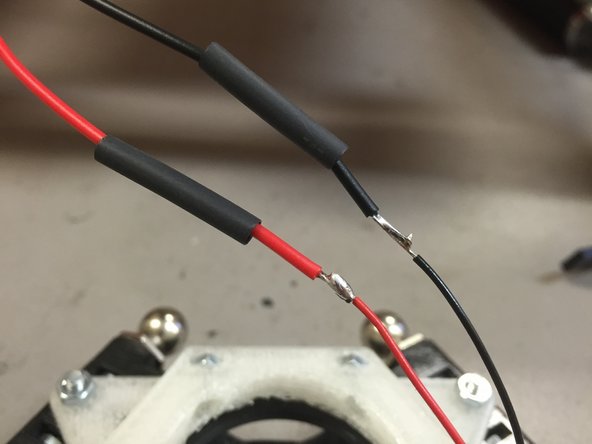

  5. Solder the connections as follows:

    • Solder the connections as follows:

    • Red fan wire to red cable wire

    • Black fan wire to black cable wire

    Edit

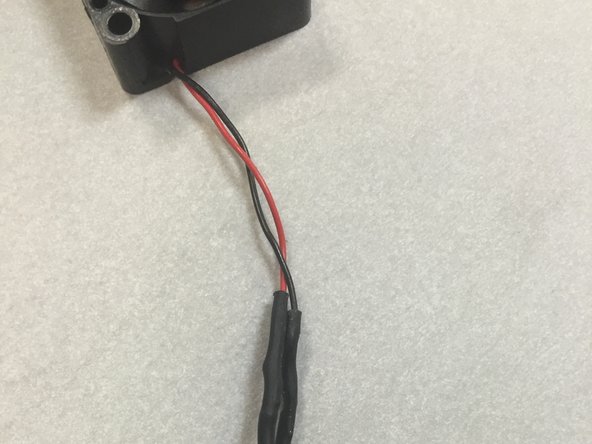

  6. Shrink the heat shrink tubing with a heat gun.

    • Shrink the heat shrink tubing with a heat gun.

    Edit

    • The end effector assembly guide will call out this fan assembly.

    Edit
